ASUS Prime H570-PLUS
In Stock
170 $
In Stock
-
About this item
- Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors
- Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
- Ultrafast connectivity: PCIe 4.0, Dual M.2, 1Gb Ethernet, rear USB 3.2 Gen 2 Type-C and Thunderbolt 4 support
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- 5X Protection III: Multiple hardware safeguards for all-round protection.
الوصف
Intel® H570 (LGA 1200) ATX motherboard with dual M.2, 8 power stages, Intel® 1 Gb Ethernet, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C®, rear USB 3.2 Gen 2, Thunderbolt™ 4 header support, PCIe 4.0, Aura Sync RGB lighting
- Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Ultrafast connectivity: PCIe 4.0, Dual M.2, 1 Gb Ethernet, rear USB 3.2 Gen 2 Type-C® and Thunderbolt™ 4 support
- 5X Protection III: Multiple hardware safeguards for all-round protection.

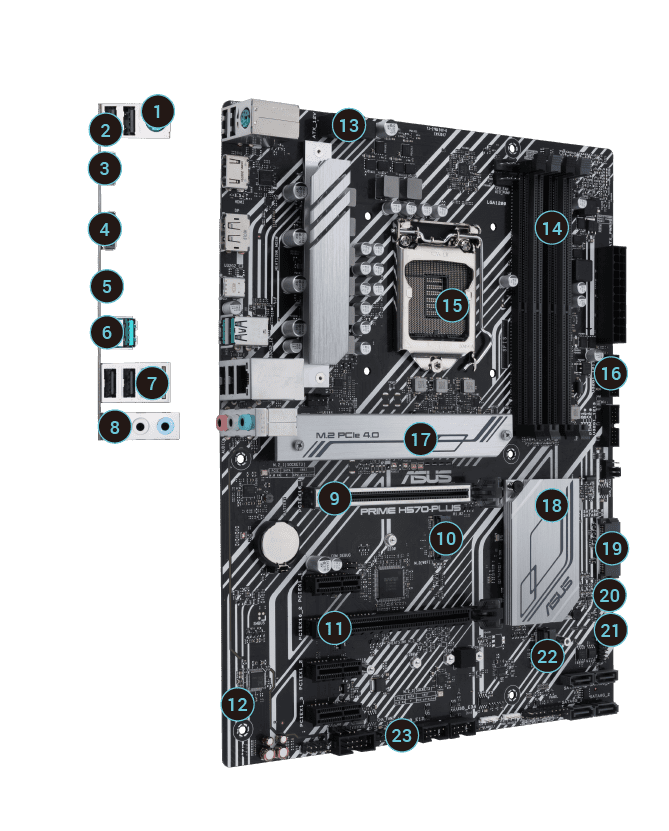

Media
- 1 x PS/2 combo port
- 4 x USB 2.0
- 1 x HDMI
- 1 x DisplayPort
- 1 x USB 3.2 Gen 2 Type-C®
- 2 x USB 3.2 Gen 2 ports
- 1 Gb Ethernet
- 3 x Audio Jacks
- PCIe 4.0 / 3.0 x16
- ASUS SafeSlot Core+
- M.2 slot only (Key E, CNVi & PCIe)
- PCIe 3.0 x16 (max. @x4)
- Intel® Optane™ Memory Ready
- Audio Features
- Premium Japanese audio capacitors
- Audio Shielding
- Dedicated audio PCB layers
- 8-pin connector
- DDR4 4600 (OC) MHz
- LGA 1200 Socket
- Intel® 11th Gen Core™ Processors & Intel® 10thGen Processors
- 4 x USB 3.2 Gen 1
- M.2 PCIe 4.0 x4 mode
- Intel® H570 Chipset
- 6 x SATA 6 Gb/s
- 2 x addressable Gen 2 headers
- 2 x AURA RGB headers
- M.2 PCIe 3.0 x4 mode
- 1 x Thunderbolt™ 4 header
.png)
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H570-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H570 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
Intelligent Control
.png)
.png)
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advance Mode
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments, so you can dial in performance just the way you want.
.jpg)
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Quickly and easily find the option or setting you need.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
EZ Mode
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
.jpg)
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.
EZ XMP
Improve DRAM performance with one click.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
Fine-tune individual fan settings simply by dragging a curve with the mouse.
EZ XMP
Improve DRAM performance with one click.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
Cool to the Core
Prime H570 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Heatsinks
.png)
M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot.
.jpg)
VRM Heatsinks and Thermal Pads
One massive VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
Prime H570 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
.jpg)
.jpg)
.jpg)
.jpg)
Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent.
Build on a Solid Foundation
Prime H570 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H570 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Memory
ASUS OptiMem
Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
.jpg)
ASUS OptiMem benefits:
-
- Improved memory stability and compatibility
- Allows lower memory latencies at equivalent voltages
- Improved memory frequency margin
Motherboards with OptiMem technology were tested with Synopsys HSPICE simulation software.
Top layer – ground ring to prevent lateral interference.
Storage
.jpg)
Dual M.2 slots (up to 64 Gbps)
Prime H570-PLUS offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
** The M.2_1 supports PCIe 4.0, and the M.2_2 support PCIe 3.0.
* Actual transmission speeds will be lower than the theoretical maximum speed.
** The M.2_1 supports PCIe 4.0, and the M.2_2 support PCIe 3.0.
Connectivity
.jpg)
PCIe® 4.0 Slot
ASUS H570 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
.jpg)
USB 3.2 Gen 2 Type-C®
Numerous USB ports support high-end rigs loaded with peripherals, including a rear-panel USB Type-C® connector with fast USB 3.2 Gen 2 connectivity for compatible case.
.jpg)
Thunderbolt™ 4 header Support
Prime H570-PLUS features Thunderbolt™ 4 support via an on-board header. With the latest Intel-certified ASUS TunderboltEX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.
Small Details Make a Big Difference
Prime H570 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Audio
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate Layer for Left and Right Tracks
Ensures minimal crosstalk between audio paths.
Premium Japanese Capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.
Personalization
.jpg)
Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
.jpg)

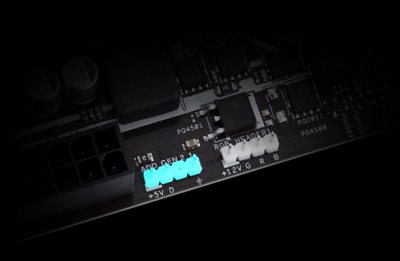

Addressable Gen 2 RGB Header
Two addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.
.jpg)
.jpg)
Aura Sync
.jpg)
DIY Friendly
.jpg)
SafeSlot Core+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
Strengthened solder points around the PCIe and DIMM pins.
Metal inserts keep graphics cards properly aligned during installation.
The metal side-panels feature hooks that firmly clasp the slot body.
LANGuard
Pumped-up throughput 2.5X higher surge tolerance
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that’s three times longer than ordinary panels.
1000+
Compatible devices and components
The Prime H570 series provides superior compatibility with thousands of components and Qualified Vendor List (QVL) identifies memory compatibility, giving you more choices for worry-free PC-building experiences.
8000+
Validation hours
Every ASUS motherboard is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.
Temperature and humidity tests
Ensures components withstand extreme conditions.
Thermal measurement tests
Ensures that the system remains cool and stable under the heaviest loads.
Insertion tests
Every port and connector is put through repeated installation cycles.
Aging tests
Up to 48-hour aging test ensures reliability.
Power-consumption tests
Checked for world-class energy efficiency.
Temperature and DC margin tests
Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.
Thermal-shock tests
Ensures ability to survive temperature changes during transportation.
Non-operation shock tests
Built to withstand jolts that may occur during shipping.
Burn-in tests
Every component is checked to ensure flawless operation.
Installation tests
Connector placement is double-checked to ensure hassle-free installation.
Drop tests
Drop tests from various heights ensure durability.
Salt and spray tests
Tested for I/O reliability, prolonged lifespan and rust-resistance.
